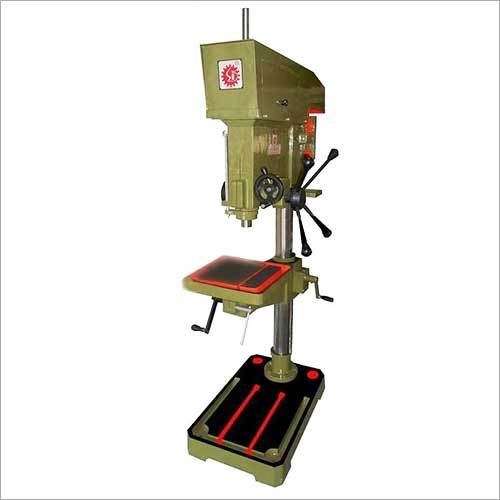

Commercial Pillar Drilling Machine

Commercial Pillar Drilling Machine
Commercial Pillar Drilling Machine
Product Code : SI 32 MM -15 CENTER
Brand Name : SHUBHAM INDUSTRIES
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

25MM Cap's Heavy duty pillar drilling machine

Specification:

SPECIFICATION


SIS 25 X 15

Tilting working table

FIXED

Drilling capacity

25mm

Pillar Diameter

92 mm

Spindle nose to table distance

650 mm

Distance from spindle nose to base distance

1060 mm

Distance from spindle centre to pillar surface (in mm)

250 mm

Table travel

420 mm

Taper in spindle

MT-4

Number of speed

8 Speed

Range of speed (RPM)

75 to 1970

Table size ( in mm )

330x 330

Base size (m/c area in mm )

465 x 730

Over all base size (in mm)

470 x 725

Spindle travel

255 mm

Pillar length

1410 mm

Over all height with pulley guard

1730 mm

v-belt section

B-52”

Weight (Approx)

265 TO 275

Motor 1440 RPM 3 Phase 440 Volts

1 H.P.

Shipping wooden case inner size L x W x H

850x450x1770 mm

Standard Accessory : Motor pulley

Extra Accessory: Electric motor, R & F Switch, Drill Chuck, Arbor, Key-way compound slide, Coolant pump with tank, Drill vice, Motor belt, machine lamp.

Note :The design & specification of our products shown or photo or catalog are subject to change for improvement without any prior notice.
